Single Acting Hydraulic Cylinders: How They Work & Where to Use Them

A single-acting hydraulic cylinder is a linear actuator. It produces motion in one direction using hydraulic fluid. It has a single port for the entry and exit of fluid. Fluid entering pushes the piston outwards. Fluid exiting returns the piston through an external force, and this can be a spring or gravity.

Single Acting Hydraulic Cylinders are less complex compared to double-acting ones. They consist of fewer pieces and seals. This makes them cheaper and easier to service. They are useful for applications requiring force in one direction only. Applications include lifting, pressing, and clamping operations.

The Basics of Hydraulic Cylinder Functionality

Hydraulic cylinders operate based on Pascal’s law. Pascal’s law explains that pressure in a closed system is the same in all directions. In a cylinder, this pressure generates force. The force pushes the piston, and the piston pushes the load.

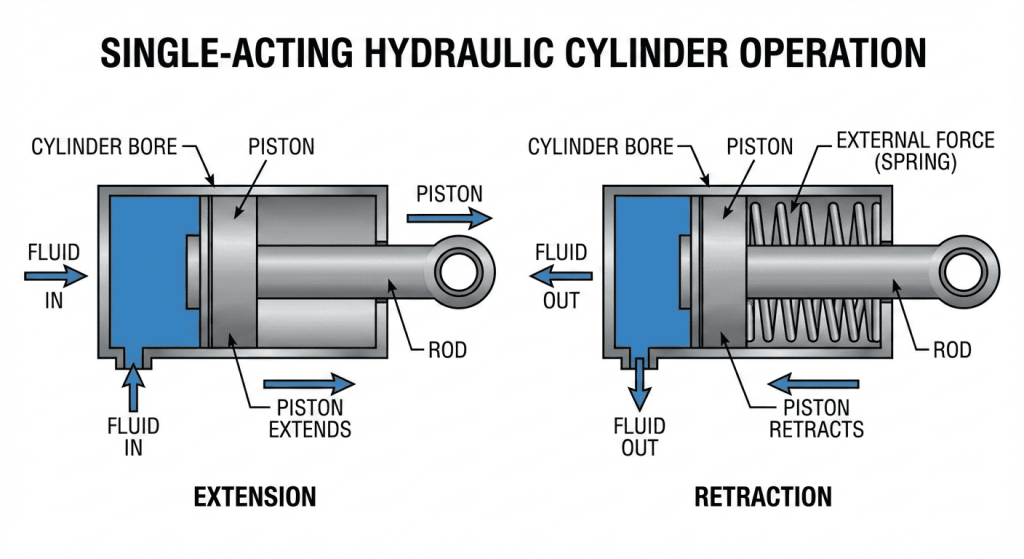

This is how a single-acting hydraulic cylinder operates:

Fluid flows into the cylinder via the port
Pressure develops inside the cylinder
The piston rod extends, generating linear motion
When the fluid is discharged, the piston recedes
The retraction is assisted by an external force

The bore diameter of the cylinder will decide the force output. The stroke length will decide how far the piston can project. These are the important considerations when choosing a cylinder for a given job.

Applications of Single Acting Hydraulic Cylinders

Single acting hydraulic cylinders find numerous applications in various industries. They are robust and can be used anywhere. Some typical applications are listed below:

Construction equipment: Utilized in dump trucks and excavators
Agricultural machinery: Used in tractors and harvesters
Material handling: Utilized in forklifts and pallet jacks
Manufacturing: Utilized in presses and molding machines
Automotive: Used in car lifts and jacks
Aerospace: Utilized in landing gear systems

These cylinders are best suited for work that requires force in one direction. They are the best option when gravity or springs can be used to recover the return stroke. This makes them cost-effective and energy-efficient in most applications.

Advantages and Disadvantages of Single Acting Hydraulic Cylinders

Single acting hydraulic cylinders have several benefits:

Simplicity: They contain fewer components than double acting cylinders. This makes them simpler to repair and less likely to fail.
Cost-effective: With fewer components, they are frequently less expensive to manufacture and buy.
Energy efficiency: They utilize hydraulic energy only in one direction. This can conserve energy in some applications.
Compact size: They tend to be less in size than double acting cylinders. This is why they are suitable for cramped spaces.
Faster return: The return stroke may be faster with the use of gravity or springs.
Less fluid usage: They consume less hydraulic fluid, thus saving costs.
Suitable for particular tasks: They perform better in applications where force in a single direction is required.

These benefits make single acting cylinders a popular choice in many industries. They offer a balance of performance and economy.

Drawbacks and Considerations

While single acting hydraulic cylinders have many benefits, they also have some limitations:

Limited force direction: They only provide force in one direction. This limits their use in some applications.
Dependence on outside forces: They require gravity or springs for the return stroke. This can be a disadvantage in certain configurations.
Lower extension speed: They can extend more slowly than double acting cylinders in certain situations.
Risk of uneven wear: The piston can wear unevenly because of the one-way force.
Shorter stroke length: They tend to have shorter strokes than double acting cylinders.
Not for every position: They might not suit horizontal or reversed positions.
Cavitation risk: Poor design can cause cavitation on return stroke.

Both of these needs to be addressed while deciding to use single acting or double acting cylinders. Based on the actual application needs, the correct decision has to be made.

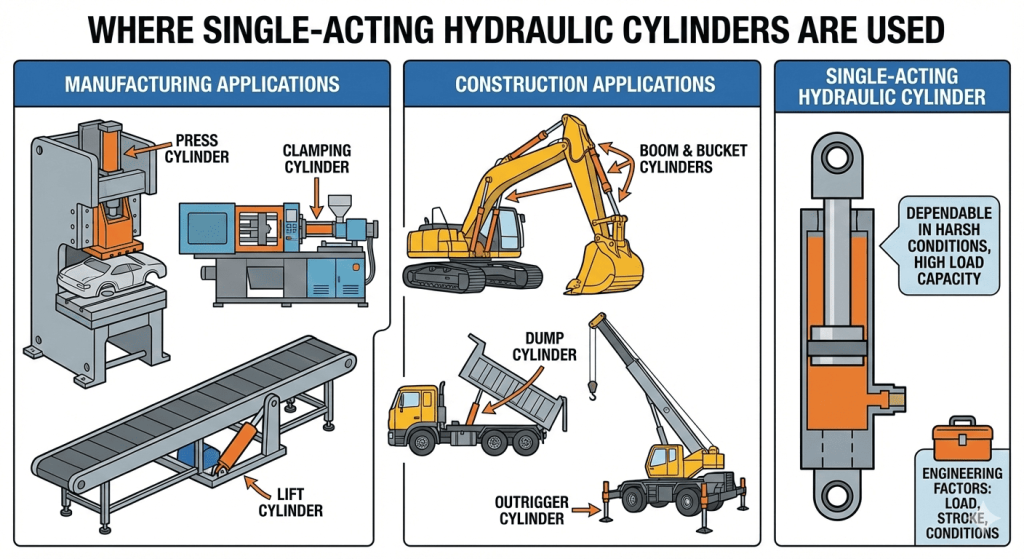

Applying Single Acting Hydraulic Cylinders across Industries

Single acting hydraulic cylinders are very important in industrial equipment. They are major components in most hydraulic systems. These systems drive a variety of equipment.

In manufacturing, single acting cylinders are employed in:

Presses: To perform stamping and forming operations
Injection molding machines: To exert clamping force
Material handling equipment: In lifts and conveyors

In construction, they are utilized in:

Excavators: For bucket and boom movement
Dump trucks: To lift the bed for offloading
Cranes: In outrigger systems for stability

Single acting cylinders’ simplicity makes them dependable in such harsh conditions. They can support a high load and be used a lot. This makes them well-suited for industrial use.

Right sizing and installation are important for peak performance. Factors such as load, stroke length, and operating conditions must be taken into account by engineers. This helps the cylinder to be able to withstand the requirements of the particular industrial application.

The Function of Single Acting Hydraulic Cylinders in Automation

Automation is an evolving trend in industry. Single acting hydraulic cylinders serve an important part in automation. They provide reliable performance and accuracy in automated equipment.

Single cylinders are employed for the following activities in automated manufacturing lines:

Clamping: Placing parts at the machining spot
Lifting: Transferring products among workstations
Pressing: Joining elements with regulated pressure

Single cylinders are commonly applied in automation due to:

They are easier to manage than double-acting cylinders
They can utilize gravity for the return stroke, conserving energy
They are smaller, occupying tight spaces in machines

Maximize Productivity with Single Acting Hydraulic Cylinders

Hydraulic cylinders are the unsung workhorses of heavy equipment, using fluid pressure to produce the tremendous force necessary to lift, push, and pull heavy weights. They are available in single-acting, double-acting, and more, each tailored to specific applications in industries such as construction, manufacturing, and agriculture. Maintenance and knowledge of their components are essential for optimal performance.

Bemko Jacks is a leading Single Acting Hydraulic Cylinders Manufacturer. Whether it’s lifting heavy loads or providing precise control in hydraulic operations, we deliver products that combine durability with advanced technology. Contact us today to learn more!
