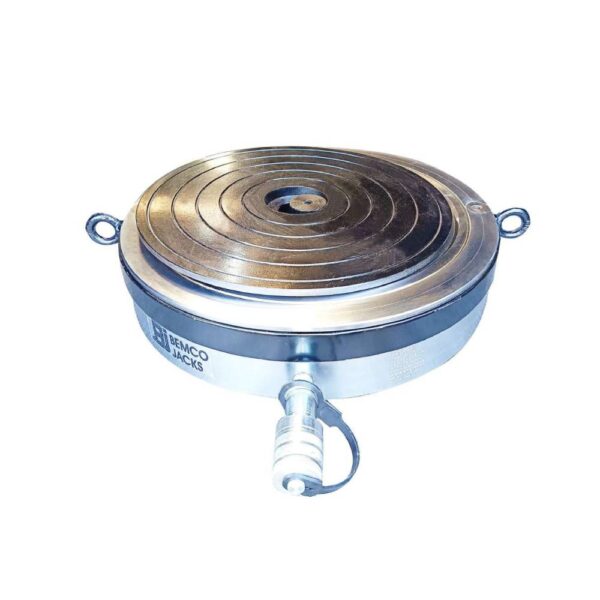

Ultra Low Height, Single Acting, Plain Ram, Hydraulic Jacks
For precision lifting and reliable performance, Ultra Low Height Hydraulic Jacks from BEMCO JACKS stand out as the perfect choice for segment and girder lifting and lowering in the construction industry. Crafted from high-grade, hardened, and tempered alloy steel, these Single Acting Hydraulic Jacks ensure robust durability and outstanding strength. The innovative tilting saddle allows for a maximum tilt angle of 2° to 3°, while an integrated overflow port serves as a stroke limiter, enhancing safety during operation. With all exposed surfaces hard chrome plated and blackodized, these jacks are designed to resist corrosion and withstand challenging environments. Customized solutions for higher capacities are available upon request. To ensure optimal performance, always operate the jacks at 80% of their rated capacity, using trained personnel, and position them on a flat, solid base to prevent over-stroking. Discover the difference we can make in your lifting operations, reach out to us today for personalized assistance. Find our innovative lifting solutions—follow us on LinkedIn today.
Features:
- Jacks are made of high grade, hardened & tempered alloy steel material.
- Tilting saddle provided to allow a maximum tilt in angle load upto 2° to 3 °.
- Overflow port is provided as stroke limiter.
- All exposed surfaces are Hard chrome plated & blackodized for protection against corrosion.
Note:
- Higher capacity & customized solutions on request.
- Specifications are subjected to change due to continual improvement.
- Capacity & stroke specified are maximum safe limits. As safe practice, use at 80% of rating.
- Equipment to be operated by trained personnel.
- Do not change any factory settings.
- Do not dismantle the jack without consulting “Bemco Jacks”.
Application:
- Suitable for segment or girder lifting & lowering .
Caution:
- Do not over stroke as –
- Mechanical ram stopper is not provided
- Position the jack on flat base, use solid & levelled support for entire base & top.
Ultra Low Height Single Acting Load Return Hydraulic Jack With Plain Ram & Spherical Saddle
Capacity : 100-500 ton / Stroke : 20 – 50mm / Max.operating pressure : 700 kg/cm2
| Model | Capacity (Ton) |
Stroke (mm) |
Effective Area (sq.cm) |
Oil Reqd. (cc) |
Max. Working Pressure (Kg/sq.c |
Approx Weight (Kg) |

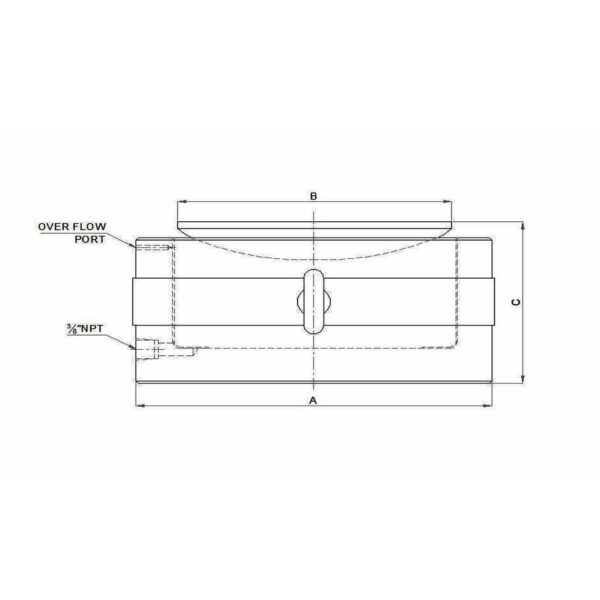

A Outer Dia (mm) |
B Saddle Dia (mm) |
C Closed Height (mm) |
| UPLPS 100/50 | 100 | 50 | 153.94 | 770 | 650 | 20 | 180 | 130 | 105 |
| UPLPS 200/50 | 200 | 50 | 314.16 | 1256 | 636 | 43 | 250 | 190 | 115 |
| UPLPS 300/50 | 300 | 50 | 452.39 | 1809 | 665 | 72 | 300 | 220 | 135 |
| UPLPS 400/50 | 400 | 50 | 572.56 | 2290 | 700 | 103 | 340 | 250 | 150 |
| UPLPS 500/50 | 500 | 50 | 754.77 | 3019 | 665 | 137 | 380 | 290 | 160 |
